4 Head DTF Printer + DTF Powder Shaker Dryer

4 Head DTF Printer + DTF Powder Shaker Dryer

$22,500.00
$24,999.00 $22,500.00
Sale Sold out

Professional DTF Printing System

```

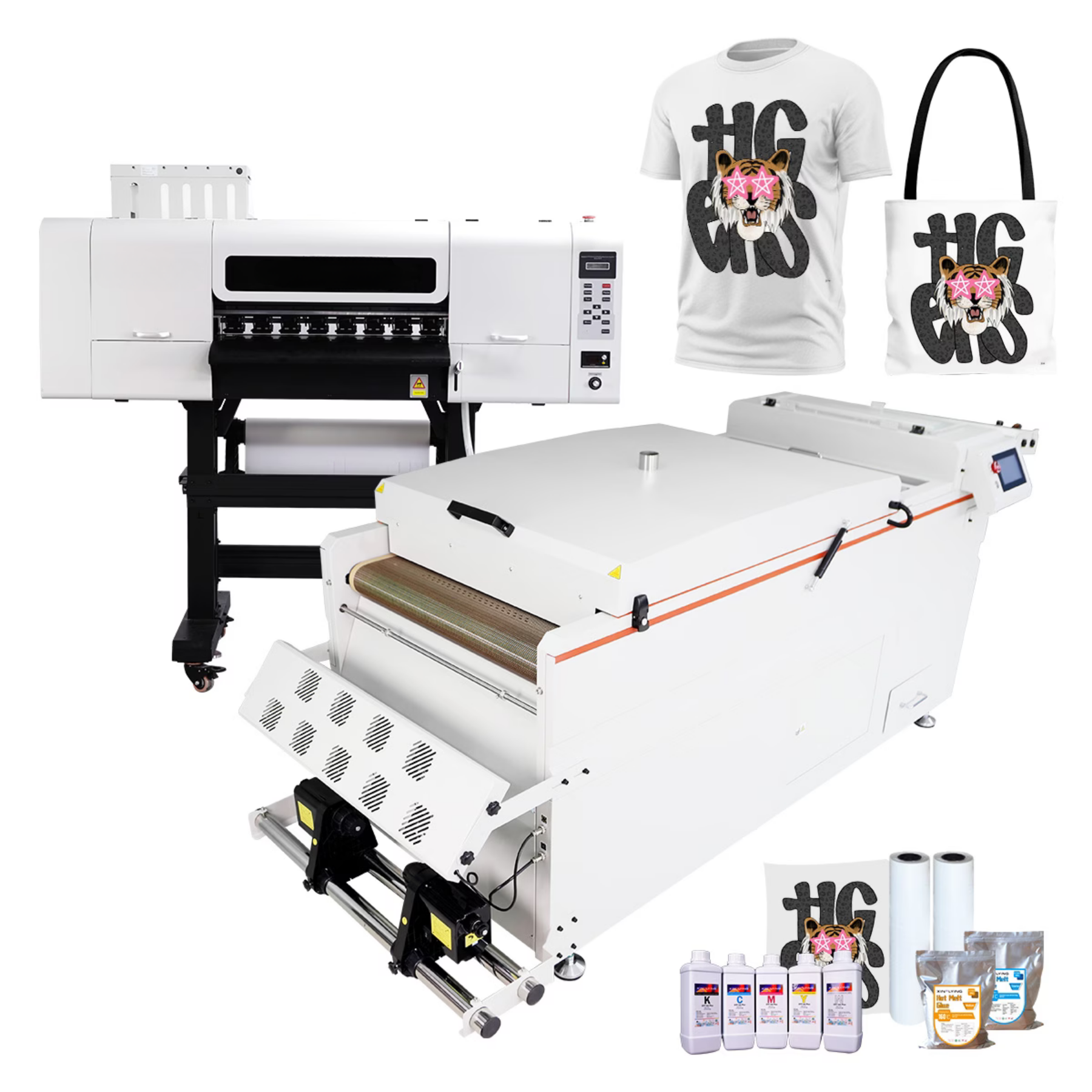

FINKPO 704E + Z60L4 24" Four-Head DTF Printer

Produce vibrant, durable transfers at professional production speeds with the FINKPO 704E + Z60L4 DTF printing system. Equipped with four Epson i3200-A1 printheads and a 24-inch printing width, this complete printer and powder-shaker solution is designed for custom apparel, textiles, promotional products, and high-volume transfer-film production.

```

High-Speed, Professional DTF Production

```

Four Epson i3200-A1 printheads provide an excellent balance of speed, precision, and dependable print quality. The integrated white-ink management and printhead-protection systems help support consistent production, while the intelligent powder shaker automates the finishing process for a smoother end-to-end workflow.

4 Epson i3200-A1 Printheads 24" Printing Width Up to 27 m²/h Printer + Powder Shaker

Product Highlights

Hoson Control Board with Smart Monitoring

A professional Hoson control board supports stable data processing, accurate printer control, and reliable long-term performance during demanding production runs.

Advanced Ink and Printhead Protection

Automatic humidification, white-ink circulation and stirring, a motorized pressure-roller lift, an ink-shortage alarm, and a waste-ink-full alarm work together to reduce clogging, minimize interruptions, and help protect the printheads.

Intelligent Integrated Powder Shaker

The Z60L4 powder shaker supports Chinese and English operation and includes automatic or manual powder spreading, vibration-assisted powder removal, a mesh-belt conveyor, infrared heating tubes, a cooling system, and sensor-controlled automatic take-up.

7-Inch Touchscreen Control Panel

The large touchscreen provides convenient access to system controls, operating information, real-time monitoring, and quick production adjustments.

Built for Continuous Production

The printer, ink-management system, and automated powder shaker work as one coordinated production line. From printing and powder application to curing, cooling, and film take-up, the system is designed to support smooth and efficient DTF transfer production.

```

Performance Specifications

```
System Model 704E + Z60L4
Printer Type Large-Format DTF Transfer-Film Printer
Printheads 4 × Epson i3200-A1
Printing Width 24"
4-Pass Speed 27 m²/h
6-Pass Speed 18 m²/h
8-Pass Speed 13 m²/h
Ink Configuration CMYK + CMYK + White + White
Media DTF PET Film
Power / Voltage 1.6 kW; 110V/220V; 50/60 Hz
Control Panel 7-Inch Touchscreen
```

Professional Printing Features

```

Electric Pressure-Roller Lift

The motorized pressure-roller lifting system provides precise media control for smooth feeding and consistent printing while supporting convenient setup and maintenance.

Automatic Humidification

The automatic humidification system helps maintain favorable printhead conditions, reducing the risk of dried ink and supporting consistent output during longer production periods.

White-Ink Circulation and Stirring

Continuous circulation and stirring help reduce white-ink settling and support stable ink delivery for consistent opacity and dependable transfer production.

Integrated Ink-Supply System

Integrated ink containers help maintain a stable supply during production, while monitoring alarms notify the operator of low ink or a full waste-ink system before those conditions interrupt the workflow.

Epson i3200-A1 Technology

Epson i3200-A1 printheads are engineered for industrial and commercial aqueous-ink applications, combining high nozzle density, accurate droplet placement, production speed, and reliable print quality.

```

Epson i3200-A1 Printhead Details

```
Model i3200-A1
Ink Type Aqueous Ink
Maximum Color Inks 4 Colors
Number of Nozzles 3,200
Nozzle Rows 8 Rows
Nozzle Pitch 1/300 Inch per Nozzle Row
Nozzle Resolution 300 npi per Column / 600 npi per Two Columns
Effective Print Width 33.8 mm (1.33")
Dimensions 69.1 × 59.4 × 35.6 mm
Weight 82 g
```

Additional Product Specifications

```
Printer Model 704E
RIP Software PrintFactory and Maintop Standard; RIIN, PhotoPRINT, and CADlink Optional
Recommended Temperature 20–30°C
Recommended Humidity 45%–65% RH
Machine Dimensions L1740 × W910 × H1610 mm
Packing Dimensions L1820 × W880 × H850 mm
Net Weight 162 kg
Gross Weight 200 kg
```

Applications

```

Designed for producing DTF transfers for T-shirts, hoodies, uniforms, workwear, tote bags, textile accessories, promotional products, fashion collections, and other compatible fabric applications. Always confirm that the garment and transfer process are suitable for the intended material.

```

Frequently Asked Questions

```

Does this system include a powder shaker?

Yes. This system pairs the 704E printer with the Z60L4 integrated powder shaker for automated powder application, heating, cooling, and film take-up.

What is the maximum printing width?

The printer supports DTF PET film up to 24 inches wide.

How many printheads are installed?

The machine is equipped with four Epson i3200-A1 printheads.

What power supply does the printer require?

The listed configuration supports 110V or 220V at 50/60 Hz. Confirm the selected voltage configuration and your facility’s electrical requirements before installation.

```

Request a Quote

```

Contact FINKPO for pricing, availability, voltage configuration, shipping information, installation requirements, and software options.

Request Your Quote ```

Production speeds are based on the listed pass settings and may vary according to artwork, RIP configuration, environmental conditions, media, ink, and operating workflow. Specifications may be updated as the product is improved. Confirm voltage, dimensions, software, and installation requirements before ordering.
