6 Head DTF Printer + DTF Powder Shaker Dryer
6 Head DTF Printer + DTF Powder Shaker Dryer
Couldn't load pickup availability
High-Capacity DTF Printing System
```XINFYING 24" Six-Head DTF Printer

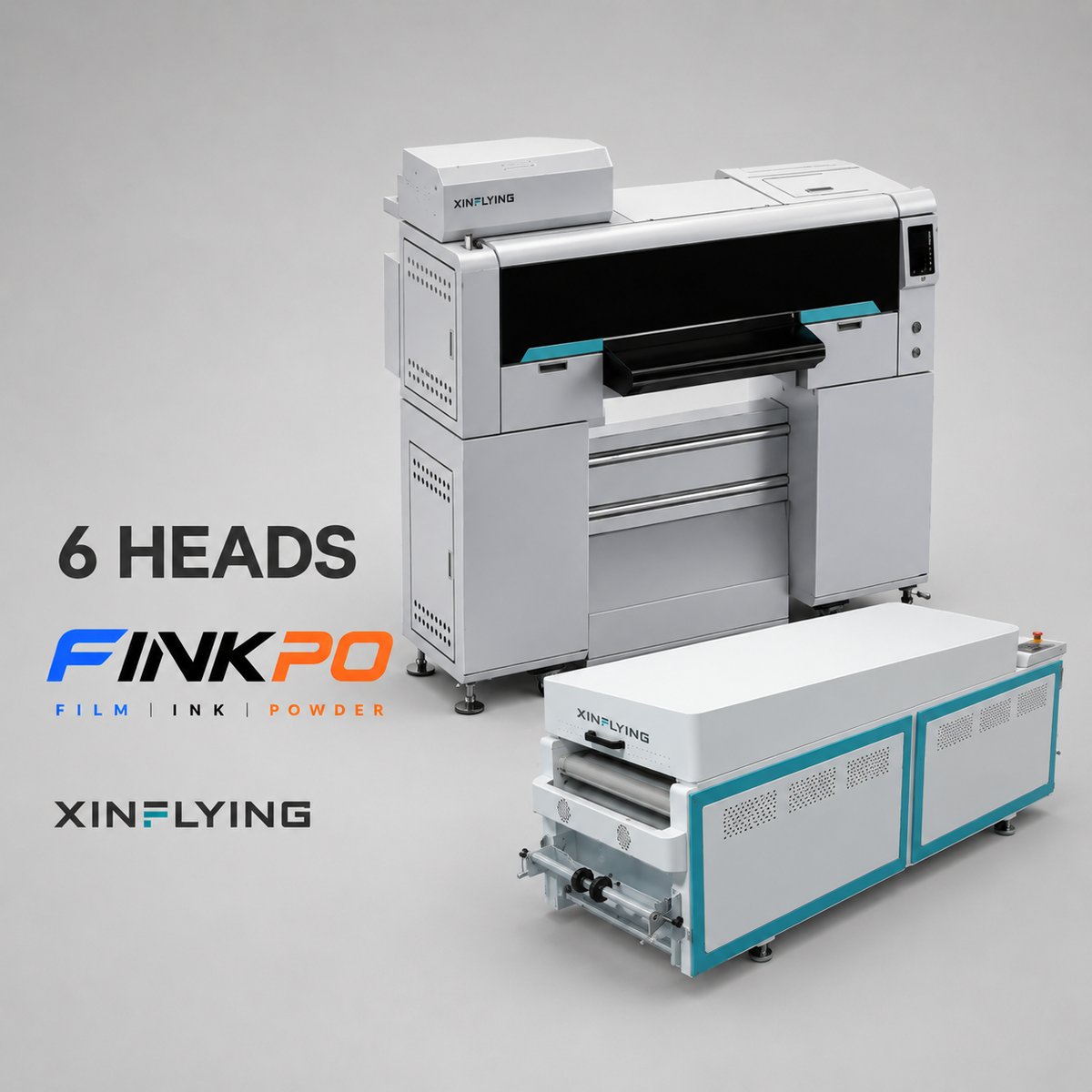

Built for growing print shops and high-volume production environments, the Xinflying F606-6I32A1 + A6502 combines six Epson i3200-A1 printheads, a 24-inch printing width, and an integrated powder-shaking and curing system. It delivers fast, vivid, and consistent DTF transfers for bulk apparel orders and professional textile customization.
```High-Capacity Production for Large Orders
```With six Epson i3200-A1 printheads and productivity of up to 28 m²/h in six-pass mode, this system is designed to process large transfer orders efficiently. Its industrial construction, precision carriage system, advanced white-ink management, and automated powder shaker support dependable performance throughout extended production runs.
Product Highlights
Six-Head High-Capacity Printing
Six Epson i3200-A1 printheads provide the speed, detail, and stable ink output required for commercial DTF production and large-volume transfer orders.
Professional 24-Inch Format
The 24-inch printing width provides generous production capacity for gang sheets, apparel graphics, textile transfers, and other compatible custom-product applications.
Up to 28 m²/h Productivity
Six-pass operation delivers listed productivity of up to 28 m²/h, helping reduce turnaround time and maintain efficient output during bulk production.
Integrated A6502 Powder Shaker
The coordinated powder-shaking and curing system automates powder application, excess-powder removal, heating, cooling, film transport, and take-up for a smooth end-to-end workflow.
Durable Industrial Construction
A robust frame and commercial-grade components support stable operation, accurate media handling, and dependable performance under demanding production conditions.
Designed for Efficient Bulk Production
The six-printhead configuration, wide-format printing platform, advanced ink-management features, and integrated finishing system make this machine a powerful solution for businesses that need consistent results, efficient turnaround times, and dependable high-volume output.
Performance Specifications
```| System Model | F606-6I32A1 + A6502 |
| Printer Type | High-Capacity DTF Transfer-Film Printer |
| Printheads | 6 × Epson i3200-A1 |
| Printing Width | 24" (600 mm) |
| Six-Pass Speed | Up to 28 m²/h |
| Ink Configuration | CMYK + CMYK + CMYK + White + White + White |
| Media | DTF PET Film |
| Supported Image Formats | JPG, TIF, PDF, and Other Compatible Formats |
| Voltage | 110V/220V |
| Powder Shaker | A6502 Integrated Powder-Shaking and Curing System |
Professional Printing Features
```Advanced Control Interface
The intelligent control interface provides convenient access to printer functions and workflow management, supporting precise adjustments, efficient operation, and real-time production control.
Six Epson i3200-A1 Printheads
Original Epson printhead technology delivers high-resolution output, smooth aqueous-ink flow, precise dot placement, and consistent color accuracy for professional transfer production.
Imported Precision Mute Rail
The high-precision imported mute-rail system reduces vibration and operating noise while maintaining accurate carriage movement. This improves print stability and supports long-term machine performance.
Advanced White-Ink Circulation
Continuous white-ink circulation helps reduce sedimentation, maintain smooth ink delivery, improve white-layer consistency, and lower the risk of nozzle clogging during extended production.
Automatic Printhead Maintenance
Automatic cleaning, flash-spray, and moisturizing functions help maintain favorable printhead conditions and reduce interruptions during longer production runs.
Printhead Anti-Collision Protection
Anti-collision protection helps protect the printhead carriage from raised media, film irregularities, and unexpected obstructions during operation.
```Epson i3200-A1 Printhead Details
```| Model | i3200-A1 |
| Ink Type | Aqueous Ink |
| Maximum Color Inks | 4 Colors |
| Number of Nozzles | 3,200 |
| Nozzle Rows | 8 Rows |
| Nozzle Pitch | 1/300 Inch per Nozzle Row |
| Nozzle Resolution | 300 npi per Column / 600 npi per Two Columns |
| Effective Print Width | 33.8 mm (1.33") |
| Dimensions | 69.1 × 59.4 × 35.6 mm |
| Weight | 82 g |
Additional Product Specifications
```| Printer Model | F606-6I32A1 |
| RIP Software | Maintop and RIIN |
| Recommended Temperature | 15–30°C |
| Recommended Humidity | 35%–65% RH |
| Machine Dimensions | L1710 × W800 × H1615 mm |
| Package Dimensions | L2060 × W990 × H940 mm |
| Net Weight | 171 kg |
| Gross Weight | 216.7 kg |
Applications
```Produce professional DTF transfers for T-shirts, hoodies, uniforms, workwear, sportswear, tote bags, fashion products, textile accessories, and promotional merchandise. Properly produced transfers can be applied to many compatible fabrics, including cotton, polyester, blends, denim, nylon, and other textile materials.
```Frequently Asked Questions
```Does this system include a powder shaker?
Yes. The F606-6I32A1 printer is paired with the A6502 powder-shaking and curing system for automated finishing and continuous film handling.
How many printheads are installed?
This configuration includes six Epson i3200-A1 printheads.
What is the maximum printing width?
The printer supports DTF PET film up to 24 inches, or approximately 600 mm, wide.
Is this machine suitable for large orders?
Yes. Its six-printhead configuration, 28 m²/h listed production speed, durable construction, and integrated finishing system make it well suited to bulk orders and growing production environments.
What power supply does the printer require?
The listed machine supports 110V or 220V configurations. Confirm the selected configuration and your facility’s electrical requirements before installation.
```Contact FINKPO for pricing, availability, shipping information, voltage configuration, installation requirements, training, and software details.
```Production speed may vary according to artwork, RIP configuration, media, ink, environmental conditions, and operating workflow. Specifications above describe the six-printhead F606-6I32A1 configuration. Confirm voltage, dimensions, software, shipping details, and installation requirements before ordering.
