5 Head DTF Printer + DTF Powder Shaker Dryer
5 Head DTF Printer + DTF Powder Shaker Dryer
Couldn't load pickup availability
High-Output DTF Printing System

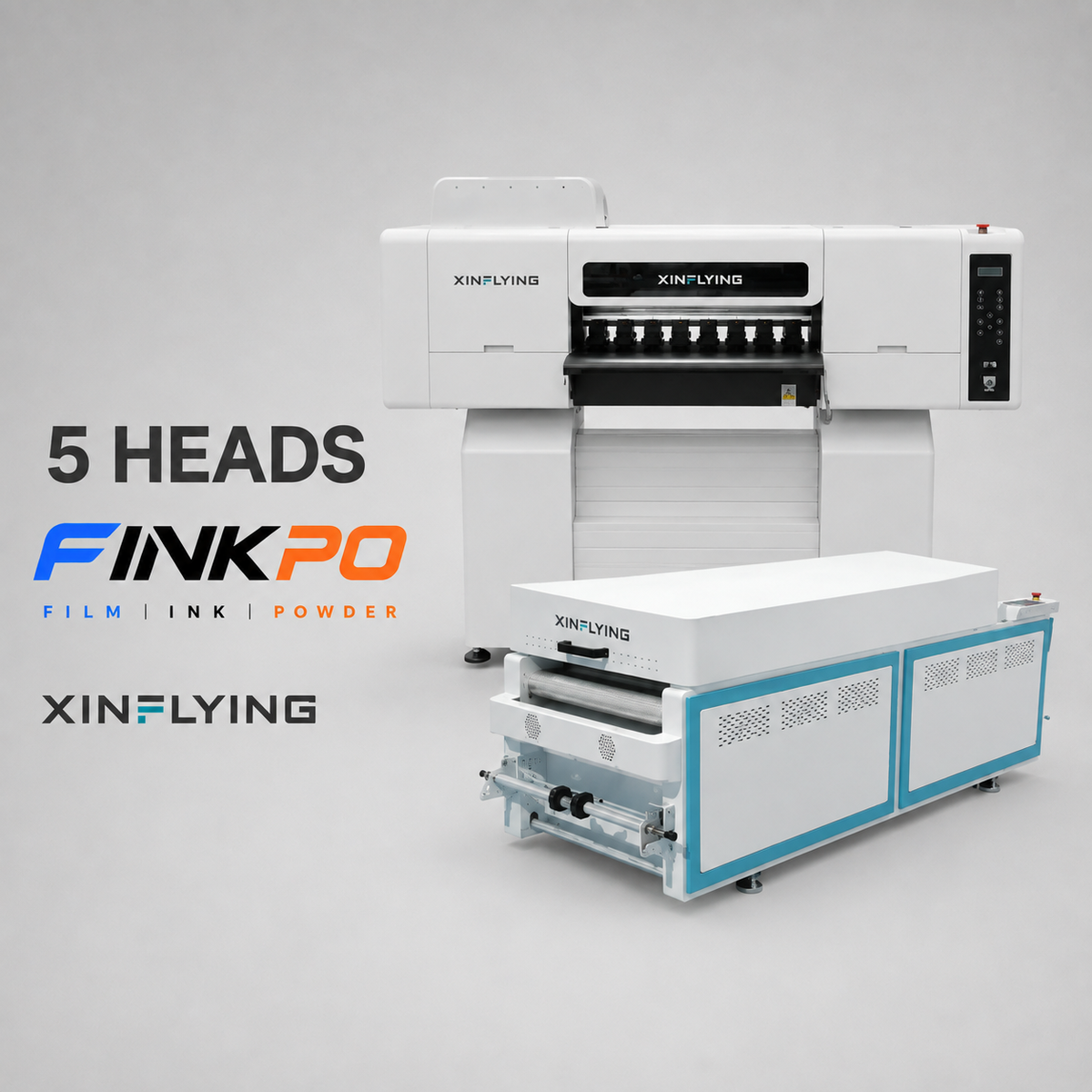

```XINFLYING 24" Five-Head DTF Printer
Built for efficient commercial production, the Xinflying C605 + A6502H combines a 24-inch DTF printer, five Epson i3200-A1 printheads, and an intelligent powder-shaking and curing system. It delivers fast, consistent transfer production for print shops, apparel businesses, and print-on-demand operations handling medium- to high-volume orders.
```High-Speed Production with Reliable Color
```Five Epson i3200-A1 printheads provide a powerful combination of production speed, precise dot placement, and stable color output. With productivity of up to 28 m²/h at six-pass operation, this system is designed to maintain efficient output across longer production runs and bulk DTF transfer orders.
Product Highlights
High-Output 600 mm DTF Solution
The 24-inch printing width supports professional transfer-film production while providing the capacity required for medium- and high-volume commercial orders.
Five Epson i3200-A1 Printheads
The five-head configuration delivers fast printing, precise detail, stable ink output, and dependable color consistency throughout extended production runs.
Smart Media Handling and Ink Management
Automatic film feeding, white-ink circulation and stirring, three-stage adjustable pressure rollers, an extended output platform, printhead anti-collision protection, and automatic humidification help maintain a smooth and reliable workflow.
Integrated Intelligent Powder Shaker
The A6502H system combines automatic or manual powder spreading, vibration-assisted powder removal, mesh-belt feeding, dual-zone heating, and automatic take-up. This integrated process reduces manual labor while supporting even curing and continuous production.
Designed for Commercial DTF Production
From automatic film feeding and ink management to powder application, curing, and take-up, the C605 + A6502H is designed as a coordinated production system. Its automated features help reduce operator workload and support consistent output across bulk transfer-film orders.
Performance Specifications
```| System Model | C605 + A6502H |
| Printer Type | Professional DTF Transfer-Film Printer |
| Printheads | 5 × Epson i3200-A1 |
| Printing Width | 24" (600 mm) |
| Six-Pass Speed | Up to 28 m²/h |
| Media | DTF PET Film |
| Printer Power | 1.6 kW |
| Powder Shaker | A6502H with Dual-Zone Heating and Automatic Take-Up |
Professional Printing Features
```Epson Printhead Technology
Epson i3200-A1 printheads deliver high-resolution output, accurate dot placement, and smooth aqueous-ink flow. The five-head arrangement supports fast commercial production while maintaining consistent print quality.
Original HIWIN Guide Rail
The precision HIWIN guide-rail system supports smooth carriage movement with reduced vibration, helping improve printing accuracy and long-term machine durability.
Large-Capacity Ink System
The large-capacity ink system is designed to maintain a stable supply during continuous operation, reduce unnecessary interruptions, and make routine ink management more convenient.
White-Ink Circulation and Stirring
Continuous circulation and stirring help reduce white-ink settling, supporting stable delivery, consistent opacity, and dependable transfer production.
Automatic Humidification
Automatic humidification helps maintain favorable printhead conditions, reducing dried ink and helping prevent interruptions during longer production periods.
Printhead Anti-Collision Protection
The anti-collision system helps protect the printhead carriage when media irregularities or unexpected obstructions are detected.
Emergency Stop Control
A built-in emergency stop button provides quick operator access to halt machine movement when immediate intervention is required.
```Epson i3200-A1 Printhead Details
```| Model | i3200-A1 |
| Ink Type | Aqueous Ink |
| Maximum Color Inks | 4 Colors |
| Number of Nozzles | 3,200 |
| Nozzle Rows | 8 Rows |
| Nozzle Pitch | 1/300 Inch per Nozzle Row |
| Nozzle Resolution | 300 npi per Column / 600 npi per Two Columns |
| Effective Print Width | 33.8 mm (1.33") |
| Dimensions | 69.1 × 59.4 × 35.6 mm |
| Weight | 82 g |
Additional Product Specifications
```| Printer Model | C605 |
| RIP Software | PrintFactory and Maintop Standard; RIIN, PhotoPRINT, and CADlink Optional |
| Recommended Temperature | 20–30°C |
| Recommended Humidity | 45%–65% RH |
| System Dimensions | L2843 × W1772 × H1076 mm |
| Listed Equipment Dimensions | L1670 × W815 × H1600 mm |
| Packing Dimensions | L2200 × W880 × H750 mm |
| Net Weight | 227 kg |
| Gross Weight | 273 kg |
Applications
```Produce DTF transfers for T-shirts, hoodies, uniforms, workwear, denim, tote bags, fashion products, textile accessories, and promotional merchandise. Transfers can be applied to a wide range of compatible fabrics, including cotton, polyester, blends, nylon, and other synthetic fibers.
```Frequently Asked Questions
```Does this system include a powder shaker?
Yes. The C605 printer is paired with the A6502H powder shaker, which provides automated powder application, vibration-assisted powder removal, dual-zone curing, mesh-belt feeding, and automatic film take-up.
How many printheads are installed?
This machine is equipped with five Epson i3200-A1 printheads.
What is the maximum printing width?
The printer supports DTF PET film up to 24 inches, or approximately 600 mm, wide.
What fabrics can be decorated with these transfers?
Properly produced DTF transfers can be applied to many compatible fabrics, including cotton, polyester, blends, denim, nylon, and other synthetic materials. Always test the selected transfer settings and fabric before full production.
Is this system suitable for bulk production?
Yes. Its five-printhead configuration, 28 m²/h listed production speed, automated media handling, integrated ink management, and intelligent powder shaker make it well suited to medium- and high-volume transfer production.
```Contact FINKPO for pricing, availability, shipping information, electrical requirements, installation details, and software options.
Production speed may vary according to artwork, RIP configuration, media, ink, environmental conditions, and operating workflow. Confirm system dimensions, packing details, voltage, software, and installation requirements before ordering.
